Indoor and Outdoor Asset Tracking

Real-Time Asset Tracking

Until now, tracking low-value items wirelessly in real-time was cost-prohibitive, devices were baulky with limited battery life.

Our Bluetooth beacons are small, just  36.5 × 23.7 × 5.0mm with a three-year battery life provide accuracy within a few meters.

Our cloud software allows users to access location data and view it on a real-time floor plan using our web-based software or our state of the art APP.

Key Features

  • Real-time location service
  • Multiple logins
  • Customisable reports and analytics
  • Asset history
  • Multiple Floorplans
  • Notification via SMS or Emails when rules are broken
phone app

Simply Sensors APP

FloorPlan View

Our floorplan view is a great visualisation tool. Track assets in near real-time. Placing the Bluetooth gateways on the floorplan is a simple a drag and drop, add the description and location.





How it works

Our Bluetooth (BLE) asset tracking system is part of the Simply Sensors range of wireless devices using the LoRaWAN network to provide a holistic approach to the connected workplace.

Our Asset tracking system comprises of three components.

LoRaWAN Gateway

Gateways will typically have a range of 300-400 meters in buildings and up to several kilometres outdoors. Multiple gateways can be used to create virtually unlimited coverage.

Bluetooth Gateway

The Bluetooth Gateway connects wirelessly to the LoRaWAN Network. A simple asset tracking system may only require one or two gateways in key areas, for example, the main entry/exit areas. Gateways can typically read Bluetooth TAG at a distance of 80 meters.
There is no limit to the number of gateways. For use cases where high location accuracy is required, so the number of gateways are deployed. Gateways only need a power source.

Bluetooth Tags

Tags are placed on or in assets. Tags are battery powered with a battery life of 3 – 5 years.





Features

  • Compliance to LoRaWAN 1.0.2
  • Up to 8 concurrent channels for LoRa transmission
  • Built-in 2.4G 802.11b/g/n Wireless LAN
  • Patented repeater mode for last-mile coverage
  • Option support wide frequency range from 470MHz to 928MHz Various internet connections: Ethernet, Wireless bridge, 3G/4G
    dongle (via USB port)
  • Active scan for channel availability with RSSI levels
  • Web UI for LoRa and network configuration
  • Cloud service for gateway health monitor
  • Support Listen Before Talk for downlink
  • Ideal for indoor positioning
  • Support OTA and USB upgrade
LoRaWAN Gateway

One Time Cost $299  Monthly Service Fee $5.00

Service includes unlimited access to our portal and API, uploading floorplans or site plans, Secure LoRaWAN Network, Software and App. We are also able to provide connectivity to several leading software services, for example, SAP.

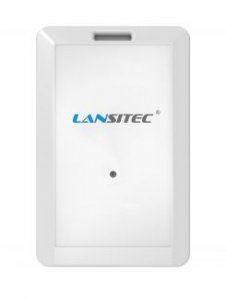

Lansitec Compact Bluetooth gateway is based on Bluetooth5.0 technology and LoRaWAN. It receives nearby Bluetooth beacon messages and transmits them to the server through LoRa.

The built-in 600mAh rechargeable battery makes it last about 10 hours when not powered. The standby time can be significantly extended by changing Bluetooth receiving settings.

Key Features

  • AES 128 Encryption
  • 10 Hour Battery Back-Up
  • Compact: 97 × 62 × 7mm
  • Micro USB Charging
Bluetooth Gateway

One Time Cost $139 Monthly Service Fee $5.00

Service includes unlimited access to our portal and API, uploading floorplans or site plans, Secure LoRaWAN Network, Software and App. We are also able to provide connectivity to several leading software services, for example, SAP.

The Tag continuously broadcasts iBeacon information according to settings. It
Built-in gyroscope sensor parameters broadcast its ID when it’s moved.

Its compact size makes it convenient to install.





Key Features

  • 3 Year Battery Life
  • Real-Time Tracking
  • Compact: 36.5 × 23.7 × 5.0mm
  • Lightweight: 6.2g
  • Loop or  Double-side Adhesive Pad
  • Motion Sensor
  • Activity Alert – Email and SMS

NOTE: Requires Bluetooth Gateway and LoRaWAN Gateway

Bluetooth TAG

One Time Cost $28 Monthly Service Fee $2.00

Service includes unlimited access to our portal and API, uploading floorplans or site plans, Secure LoRaWAN Network, Software and App. We are also able to provide connectivity to several leading software services, for example, SAP.

The example shown is based on a single storey building covering a radius of 250 meters with Six key locations. The total number if tracked assets is 200

Hardware

Service Fees

Service includes unlimited access to our portal and API, uploading floorplans or site plans, Secure LoRaWAN Network, Software and App. We are also able to provide connectivity to several leading software services, for example, SAP.

All pricing includes GST

Our Platform

The Simply Sensor Platform has been designed to provide business with the ability to quickly deploy, monitor and manage a comprehensive range of connected devices without the need for complex coding or technical know-how.   Most of our connected devices are battery-powered and wireless using the LoRaWAN Network, Wi-Fi, Cellular (mobile) or Satellite communication options, making deployment incredibly easy

Please complete the online quote request, and a member of our team will contact within 4 business hours. Alternatively please call us directly on 1300 599 540

  • For example,. you may have six key areas where assets are stored or allocated. In this case, the answer is 6
