Smart Bins – Waste Level Monitoring

Waste Level Monitoring

Simply Sensors Bin waste level monitoring system can be installed to most bins in minutes without the need to engage IT or have technical knowledge.

Our battery-powered devices provide between 3 – 5 years of battery life.

Use Existing Bins

Unlike many Smart Bin providers, there is no need to purchase new bins. Our sensor can be retrofitted in-situ in a few minutes.

Ready To Go

Sensors are pre-configured, and once installed, they will be sending regular bin level status

We’ll let you know when your bin needs to be emptied

We’ll send text and email when the waste bins are full (or reach a set level) and need to be emptied. The alert details  the location of each bin

wireless bin level sensor -smart bins

MONITOR WASTE/BIN LEVELS FROM ANYWHERE

Save money and schedule staff based off of trends and data

Save time and resources with our smart dashboard, APP,  maps and alters.

From bins equipped with wireless
fill-sensor devices, to data-based
management, the industry is moving
into a more efficient and cost
saving way of life.

Get alerted on the go to take action from anywhere.

BIN LEVEL MANAGEMENT FOR BUSINESSES OF ALL KINDS

Commercial Buildings

Airports

Public Places

Cities

College Campus

Hospitals

[/vc_row_inner]

How it works

Our wireless bin waste level monitoring system is part of the Simply Sensors range of wireless devices using the LoRaWAN network to provide a holistic approach to the connected workplace.

Our wireless bin waste level monitoring system comprises of two components.

LoRaWAN Gateway

Gateways will typically have a range of 300-400 meters in buildings and up to several kilometres outdoors. Multiple gateways can be used to create virtually unlimited coverage.

Smart Bin Sensor

Simply Sensors Bin waste level monitoring system can be installed to most bins in minutes without the need to engage IT or have technical knowledge.

Our battery-powered devices provide between 3 – 5 years of battery life.



Features

  • Compliance to LoRaWAN 1.0.2
  • Up to 8 concurrent channels for LoRa transmission
  • Built-in 2.4G 802.11b/g/n Wireless LAN
  • Patented repeater mode for last-mile coverage
  • Option support wide frequency range from 470MHz to 928MHz Various internet connections: Ethernet, Wireless bridge, 3G/4G
    dongle (via USB port)
  • Active scan for channel availability with RSSI levels
  • Web UI for LoRa and network configuration
  • Cloud service for gateway health monitor
  • Support Listen Before Talk for downlink
  • Ideal for indoor positioning
  • Support OTA and USB upgrade
LoRaWAN Gateway

One Time Cost $299 – $1499 Depending on Use Case

Monthly Service Fee $5.00

Service includes unlimited access to our portal and API, uploading floorplans or site plans, Secure LoRaWAN Network, Software and App. We are also able to provide connectivity to several leading software services, for example, SAP.

Dimension 115*115*50mm
Net Weight 150g
Colour Black
Overview Shell Material ABS
Principle Ultrasonic @ 112kHz
Detection Range 200cm (vertical)
Accuracy of height 3mm
Detector Blind area 15cm
Accuracy of temperature 2℃
Accuracy of angel 2° (optional)
MCU STM32, 32bit ARM® core controller
LoRa Module Semtech® 1276
Controller Sensitivity “-137dbm@292bps (RX), 5~20dbm(Tx)
Frequency LoRaWAN®
CN470/EU868/US915/AS923Mhz,or
Working Mode Class A
Radio Activation ABP/OTAA activation;
Communication Distance 3km in view sight;
Lifetime for one charge 5 years at 4 hours report interval.
Internal Battery ER18505M non-recharged Lithium Battery
Power 7000mAh @ 3.6V,
<210mA@3.6V(uploading),
Current <100mA@3.6V(normal),
Operating Temperature -20 ~ +70℃
Storage Temperature -40 ~ +85℃
Environment Protection Level IP66
smart bin sensor

One Time Cost $199   Monthly Service Fee $5.00

Service includes unlimited access to our portal and API, uploading floorplans or site plans, Secure LoRaWAN Network, Software and App. We are also able to provide connectivity to several leading software services, for example, SAP.

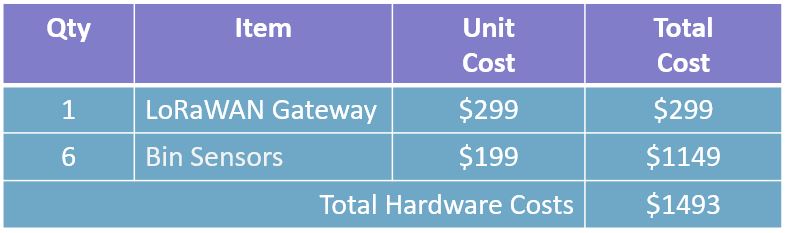

The example shown is based on a single storey building covering a radius of 250 meters with Six Bins

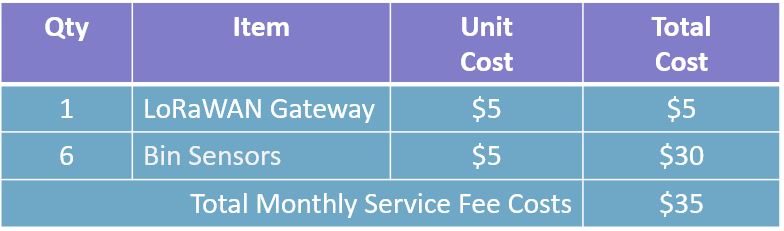

Monthly Service Fees

Service includes unlimited access to our portal and API, uploading floorplans or site plans, Secure LoRaWAN Network, Software and App. We are also able to provide connectivity to several leading software services, for example, SAP.

All pricing includes GST

Our Platform

The Simply Sensor Platform has been designed to provide business with the ability to quickly deploy, monitor and manage a comprehensive range of connected devices without the need for complex coding or technical know-how.   Most of our connected devices are battery-powered and wireless using the LoRaWAN Network, Wi-Fi, Cellular (mobile) or Satellite communication options, making deployment incredibly easy.

Service includes unlimited access to our portal and API, uploading floorplans or site plans, Secure LoRaWAN Network, Software and App. We are also able to provide connectivity to several leading software services, for example, SAP.

All pricing includes GST

Please complete the online quote request, and a member of our team will contact within 4 business hours. Alternatively please call us directly on 1300 599 540
